Discover an overview of the different Fiber Optic Cable Testing services and their importance for ensuring proper durability and reliability.
It is imperative to test fiber optic cables in data transmission networks in order to ensure their proper functioning and reliability. The object of this test is to establish uniform generic requirements for the geometrical, transmission, material, mechanical, ageing (environmental exposure), climatic and electrical properties of optical fibre cables and cable elements, where appropriate.
Here's an overview of some common tests conducted on fiber optic cables:
Generic specification
- Cable materials.
- Cable construction.
- Measuring and test methods.
- Measuring methods for transmission and optical characteristics
- Test methods for mechanical characteristics.
- Test methods for environmental characteristics.
Visual Inspection
This is the initial step and involves visually examining the cable and connectors for any signs of damage, dirt, or misalignment. Specialized tools such as fiber optic scopes may be used for detailed inspection.
Continuity Testing
This test verifies the continuity of the fiber optic cable, ensuring there are no breaks or interruptions in the signal path. A continuity tester sends a low voltage signal through the cable to detect any breaks or faults.
Insertion Loss Testing (Attenuation)
Insertion loss measures the amount of signal loss that occurs when light is transmitted through the fiber optic cable. This test is performed using an optical time-domain reflectometer (OTDR) or a light source and power meter. It helps determine the quality of the cable and connectors.
Return Loss Testing
Return loss measures the amount of light that is reflected back toward the source due to imperfections in the cable or connectors. High return loss can indicate poor connections or splices. This test is typically conducted using an OTDR or an optical spectrum analyzer.

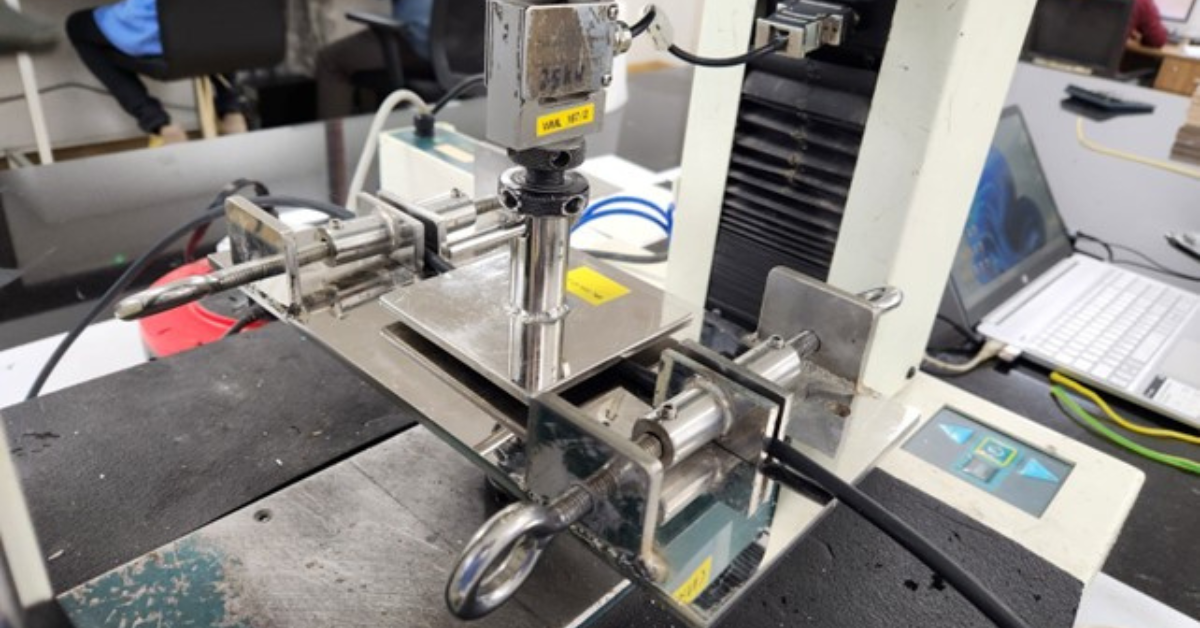

Mechanical testing
Mechanical testing for fiber optic cables is crucial to ensure their durability and performance under various mechanical stresses and conditions. Here are some common mechanical tests performed on fiber optic cables;
- Tensile strength test
- Bend Radius Test
- Crush Resistance Test
- Impact Resistance Test
- Twist Testing etc.
Environmental Testing
Fiber optic cables may be subjected to environmental conditions such as temperature extremes, humidity, and mechanical stress.
Environmental testing evaluates the cable's performance under these conditions to ensure its reliability in real-world deployment.
- Temperature Cycling Test
- Temperature and Humidity Test
- UV Aging Test
- Chemical Resistance Test
- Water Ingress Test etc.
By performing these mechanical tests, fiber optic cables are tested to make sure that they can withstand the stresses of installation, operation, and environment conditions, ensuring their durability and reliability.
