A practical field test that helps engineers confirm the real behavior of soil before foundation construction.
In foundation engineering, verifying the actual bearing capacity of soil on site is a crucial step before starting construction. While geotechnical reports provide design values based on investigations and laboratory testing, field verification is often required to confirm that the soil conditions match the design assumptions. One of the most reliable methods used for this purpose is the Plate Load Test (PLT).

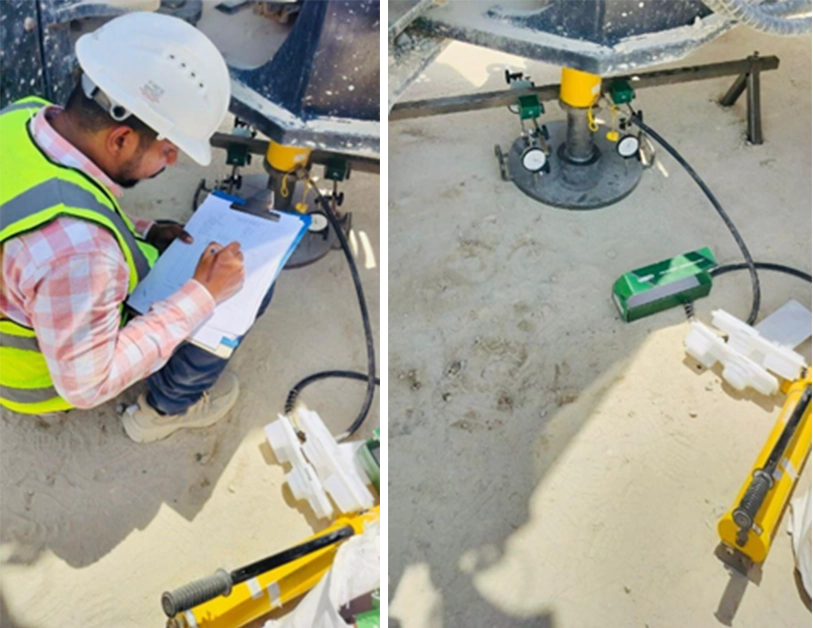

The Plate Load Test is an in-situ field test carried out at the foundation level. In this test, a rigid steel plate is placed on the prepared ground surface. Load is then applied gradually using a hydraulic jack, with a reaction load provided through a reaction frame or loaded platform placed above the jack arrangement. This setup allows controlled loading to simulate the pressure that will be exerted by the actual foundation.
Settlement readings are recorded at each stage of loading using dial gauges placed on independent reference beams. By carefully monitoring the settlement for every load increment, engineers can observe how the soil responds to increasing pressure.
By analyzing the relationship between the applied load and the corresponding settlement, engineers can better understand the actual condition and behavior of the soil under load. This provides valuable insight into how the soil will perform when the structure begins to transfer loads to the foundation.
One of the major advantages of the Plate Load Test is that it reflects real site conditions, including soil compaction. Because of this, the test helps engineers validate design parameters and ensure that the soil can safely support the proposed foundation system.
In many construction projects, the Plate Load Test acts as a bridge between geotechnical design and field reality, giving engineers and project stakeholders greater confidence in the safety and performance of the foundation.
